our projects
With a foundation rooted in innovation and excellence, our team is dedicated to crafting extraordinary spaces and fostering unparalleled success in every project we undertake.
Egypt
High Speed Train Connecting Egypt’s Ain Sokhna to Alamein
This railway line will link Ain Sokhna on the Red Sea coast and the new Alamein City on the Mediterranean coast in Egypt. The project is about Build, finance and operates an electric high-speed passenger and freight railway line. The 534-kilometre high-speed rail is to be developed using a combined engineering, procurement and construction (EPC) and financing model. This project comprises first phase of Egypt’s plan to build 2,000 kilometres of high-speed rail to complement its mainline network. Client has prequalified 10 consortiums for the contract to build, finance and operate this scheme. The Transport Ministry is studying offers from 23 local and international firms to build, operate and maintain a high-speed electric railway line linking Ain Sokhna to Al Alamein. A joint committee from the ministries of housing and transport is expected to conclude its review of the offers within a month, after which the government will begin receiving financial and technical offers. The 534-km line will accommodate both cargo and passenger trains, passing through the new capital, 6 October City, and Alexandria.
Client
Egypt Government
Client
FTA, Federal Transit Authority
Year
2016
Abu Dhabi, UAE
Freight Traffic Toll System In The United Arab Emirates
Services
Analysis of the country’s road network and freight traffic. Feasibility study for introducing a toll system. Modelling of the road network using VISUM Software, analysis of different toll rates, technology options for system deployment, CAPEX and OPEX calculations, financial feasibility and cost-benefit study, deployment strategies.
Saudi Arabia
Riyadh Metro
Key facts
Lines 4, 5 and 6. Project length: 65 km. 11 underground stations and 17 at-grade stations. 2 depots. 26.6 km of tunnel.
Line 5: 13.2 km, with 12 km of single tube tunnel excavated with TBM, 860 m of C&C tunnel, 11 deeps underground stations, 11 ancillary shafts, connections with lines 1 and 2 and an underground depot with 260 m in width and 400 m in length.
Construction method: EPB TBM with rock capabilities and 10 m of excavation diameter.
Geology: Limestones, breccia and calcarenite with karst development. Anthropogenic fill and paleostreams filled with granular water bearing soil.
Services
Preliminary design and detailed design for D&B contract. Structures, M&E, architecture, civil works and landscaping. Coordination of the geotechnical and tunnel design of the three lines. Environmental integration under Saudi environmental legislation, and in accordance with the recommendations of the corresponding Environmental Impact Assessment. Noise and vibration study, and final design of mitigation measures.
Client
FAST Consortium – Metro Riyadh Alliance.
Year
2020
Construction Budget
EUR 7,800 million
Client
Saudi Railway Company (SAR)
Year
2021
Construction Budget
EUR 776 million
Saudi Arabia

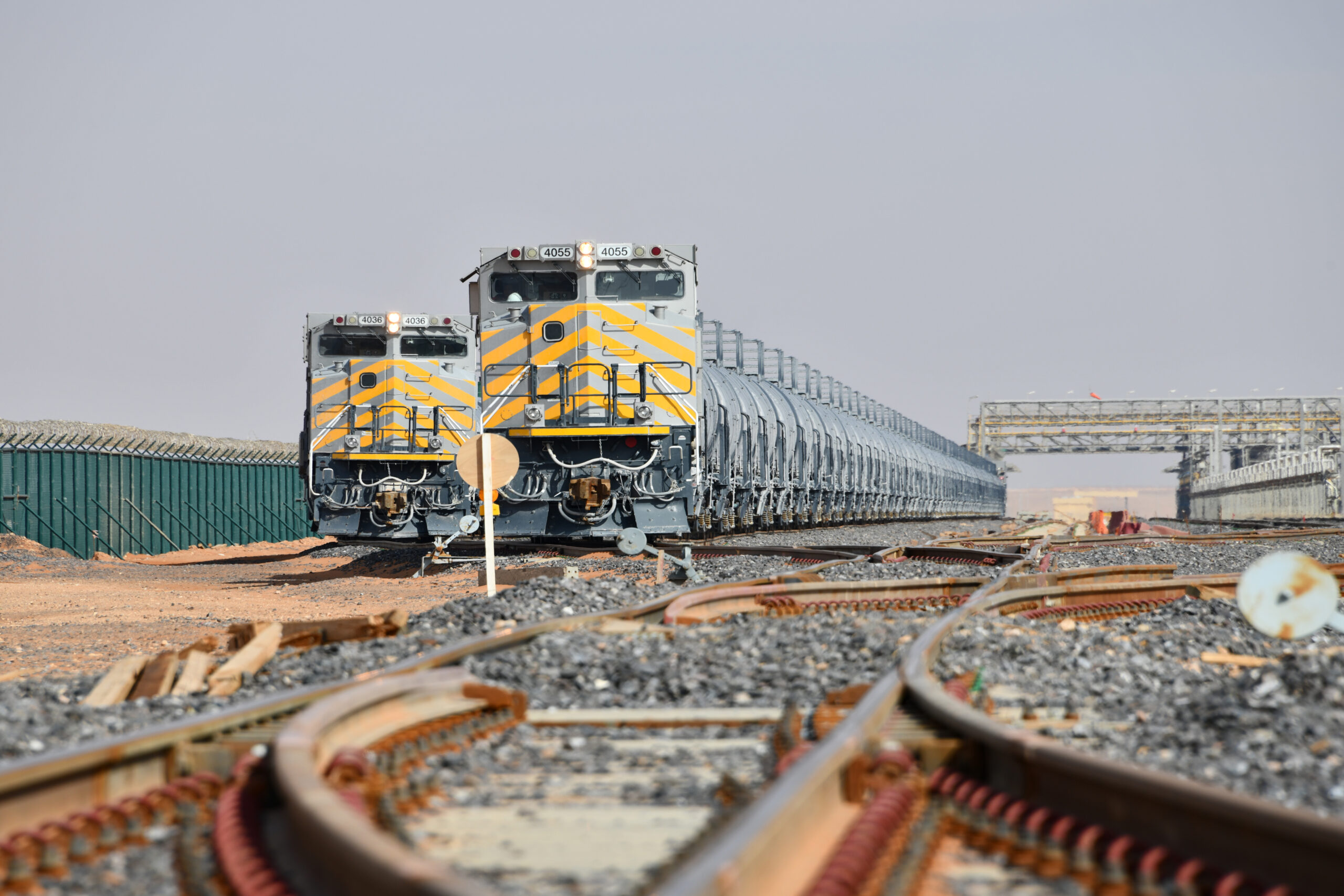

Jubail-Damman Railway Link, Facilities Within Jubail & Northern Branch Line
Key facts
5 new sections, total length 415 km. Jubail – Damman Link:115 km, 57 culverts, 1 camel crossing, 12 railway bridges, 9 road bridges; Jubail Link: 85 km, 65 structures; Wa’ad Al Shamal: 140 km; Turaif bulk plant: 35 km; Jouf Yard – Sakaka plant: 40 km, 55 culverts, 7 camel crossings, 1 road bridge, 6 existing utility protection structures. Mixed Traffic (Passengers and Freight). Track With: 1,435 mm. Design Speed: 250 km/h. ERMTS Level 2. HS for passengers movement.
Services
Project management, design review, tender and land acquisition support services and construction supervision and commissioning.
Saudi Arabia
Framework Agreement For 26 Wastewater Treatment and Desalination Plants
Key facts
Beneficiary population: 20 million (supply to 15 million and wastewater treatment for 5 million).
Concession for the construction and operation of desalination and water treatment systems based on public-private partnerships: 14 desalination plants with a total production capacity of almost 6 million m3/day. Three plants will achieve a net capacity of 600,000 m3 per day per unit (Jubail 3A, Jubail 3B and Rabigh 4).
12 wastewater treatment projects, to implement a treatment capacity of nearly 1.5 million m3/day. One of the treatment plants will achieve a capacity of 375,000 m3 per day. (Medinah 3).
Technology:
Desalination: reverse osmosis, combined in some cases with photovoltaic plants to reduce specific energy consumption
Wastewater treatment: innovative systems such as Nereda technology or continuous flow SBR will be used, introducing cogeneration systems in some plants to obtain better energy efficiency and consumption.
Services
Detailed design review and construction supervision.
Client
Saudi Water Partnership Company (SWPC)
Construction Budget
USD 8,800 million
Year
2025
Client
Riyadh Airports Company (RAC)
Year
2022
Riyadh, Saudi Arabia

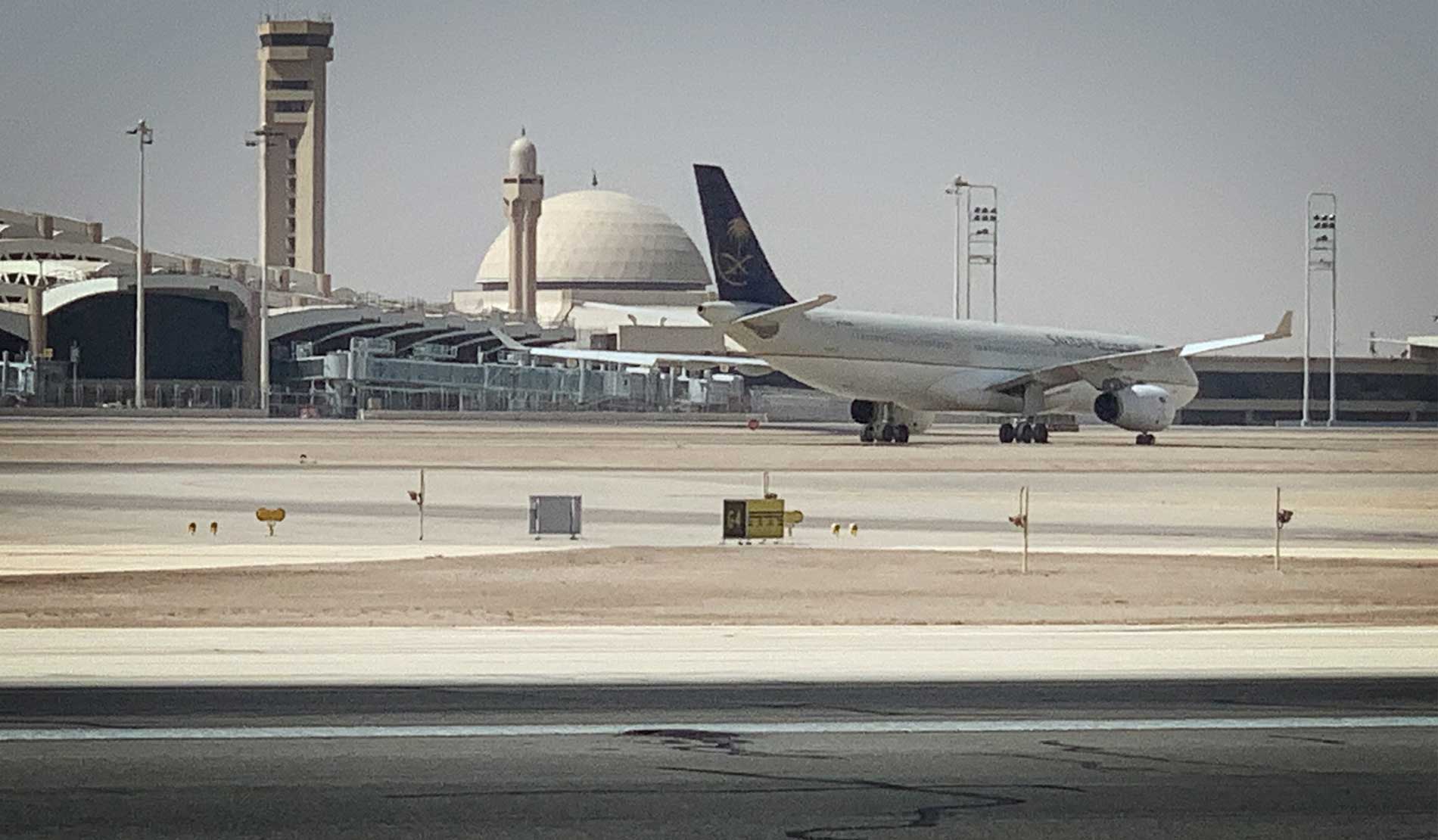

Runway At King Khalid International Airport
Key facts
The airport is in the highest category on the ICAO international scale and each of its two runways (15R-33L y 15L-33R) is 4.2 km long and 60 m wide.
Services
Design services for runway and taxiway rehabilitation. A new FOD Detection System will also be designed and implemented at the airport.
Saudi Arabia

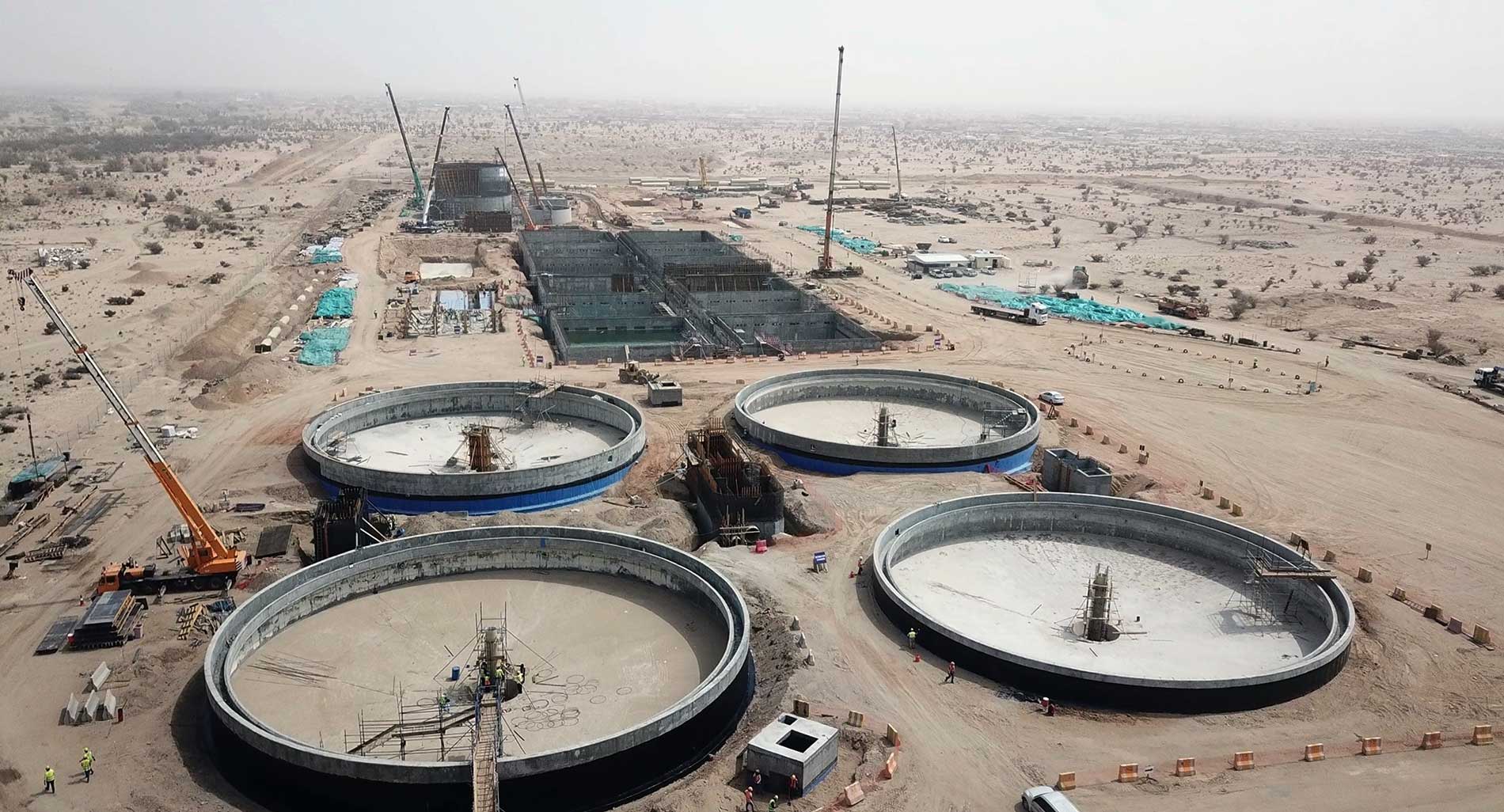

Taif independent Sewage Treatment Plant
Key facts
Independent sewage treatment plant with an average daily influent of 100,000 m3/day which could be expanded up to an ultimate average daily flow capacity of 270,000 m3/day.
Beneficiary population: 700,000 residents
Proposed treatment:
Water line: Pretreatment + Primary clarifiers + SBR + Disk filters + Disinfection.
Sludge line: Screening + Gravity thickening + Mechanic thickening + Anaerobic digester + Press filters + Cogeneration + Drying up to 90% dry solids through solar driers.
Services
Detailed design review and construction supervision.
Client
Saudi Water Partnership Company (SWPC)
Year
2022
Construction Budget
USD 62.8 million
Client
FYAT Consortium (Red Line South); RLR Consortium (Red Line North); Saudi Binladin Group-Porr-HBK Joint Venture (Green Line)
Year
2019
Construction Budget
EUR 1,200 million
Qatar

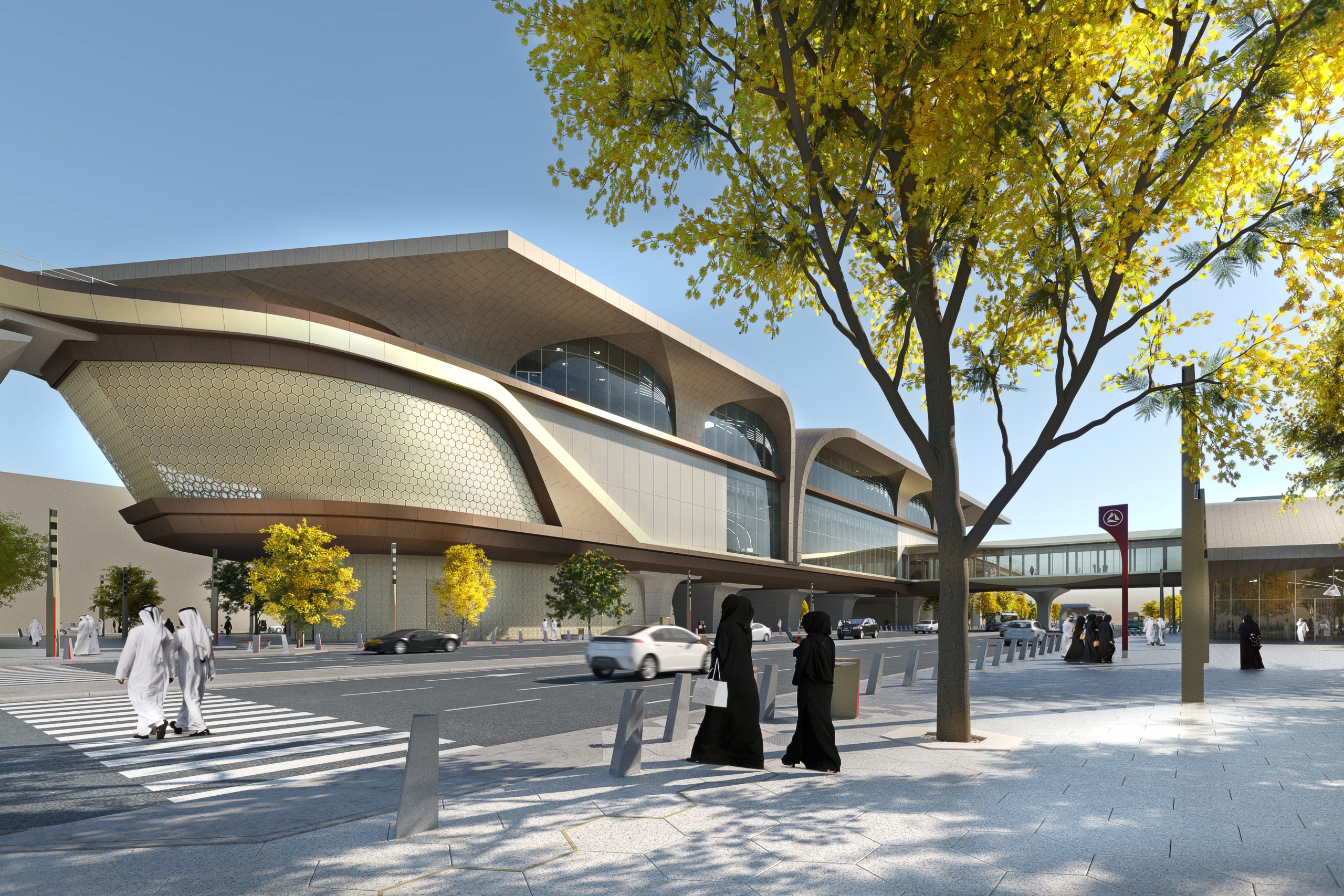

Doha Metro
Key facts
Red Line North, Red Line South and Green Line. Project length: 14 km. 6 elevated and at-grade stations. GFA: 90,000 sqm.
Services
Detailed design. Geotechnical engineering for viaduct and station foundations and temporary works for underpasses, structures, civil works, MEP, architecture, architectural finishes, façades, vertical transportation and landscaping.
Awards
Engineering News Record (ENR) Global Best Projects Award 2019, Rail. 3rd International Agustín de Betancourt Infrastructure Award 2019.
Doha, Qatar

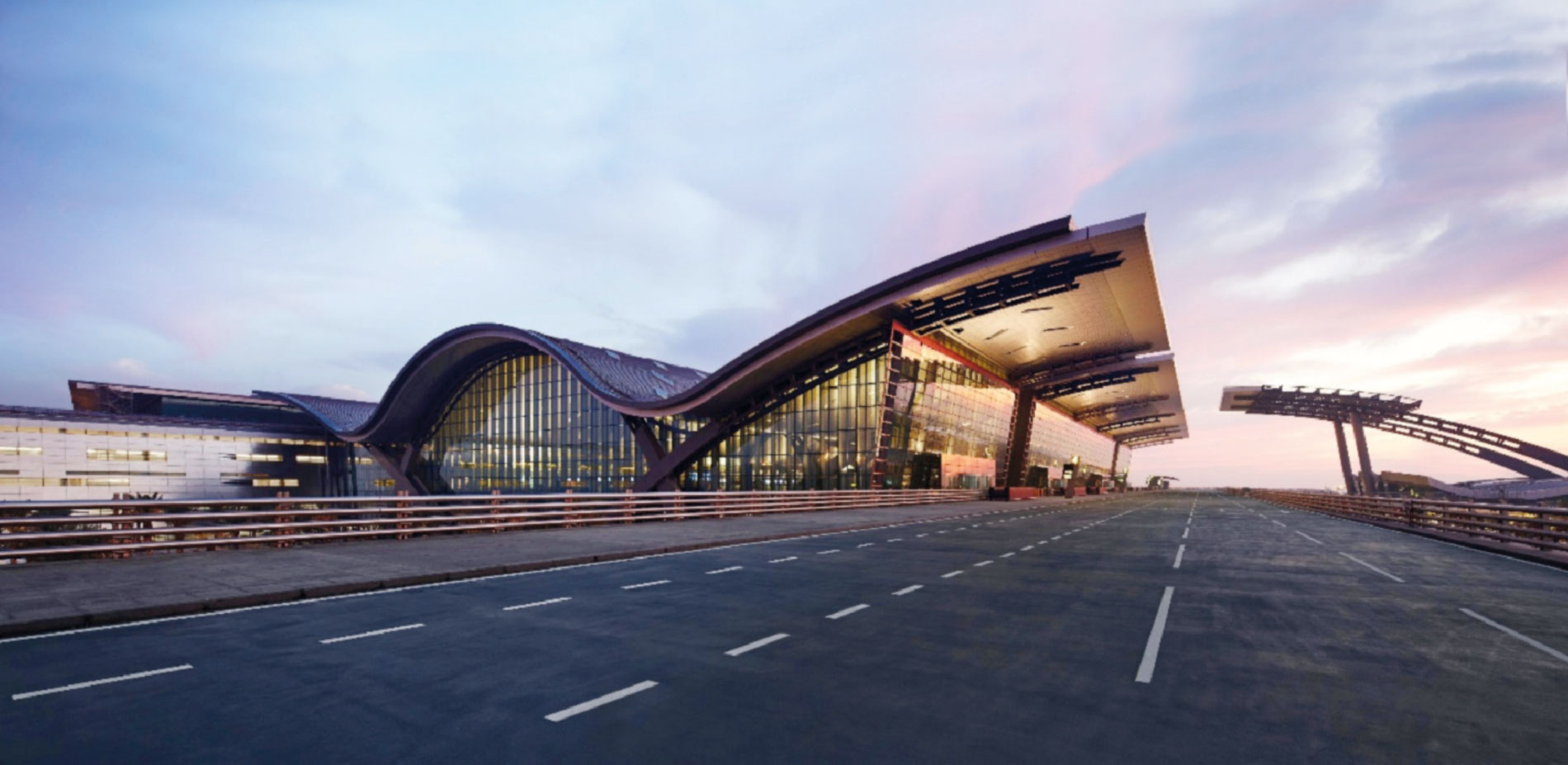

Hamad International Airport
Key facts
New aircraft contact positions: 24 including 15 MARS. Terminal building expansion: 315,000 m2. New Baggage Handling System facilities (BHS). Passengers: 53 million/year
Services
Basic and detailed expansion design and tender assistance.
Client
Hamad International Airport (HIA)
Year
2020
Client
Advance Water Technology
Year
2019
Construction Budget
EUR 152 million
Saudi Arabia
Al Khafji Desalination Plant
Key facts
Average flow between 60,000m3/day and 90,000m3/day. Two-step reverse osmosis technology. Brine evacuation through two 3 km long GRP pipes of DN 1,100 mm.
Services
Design review, construction supervision and commissioning.
KAZAKHSTAN

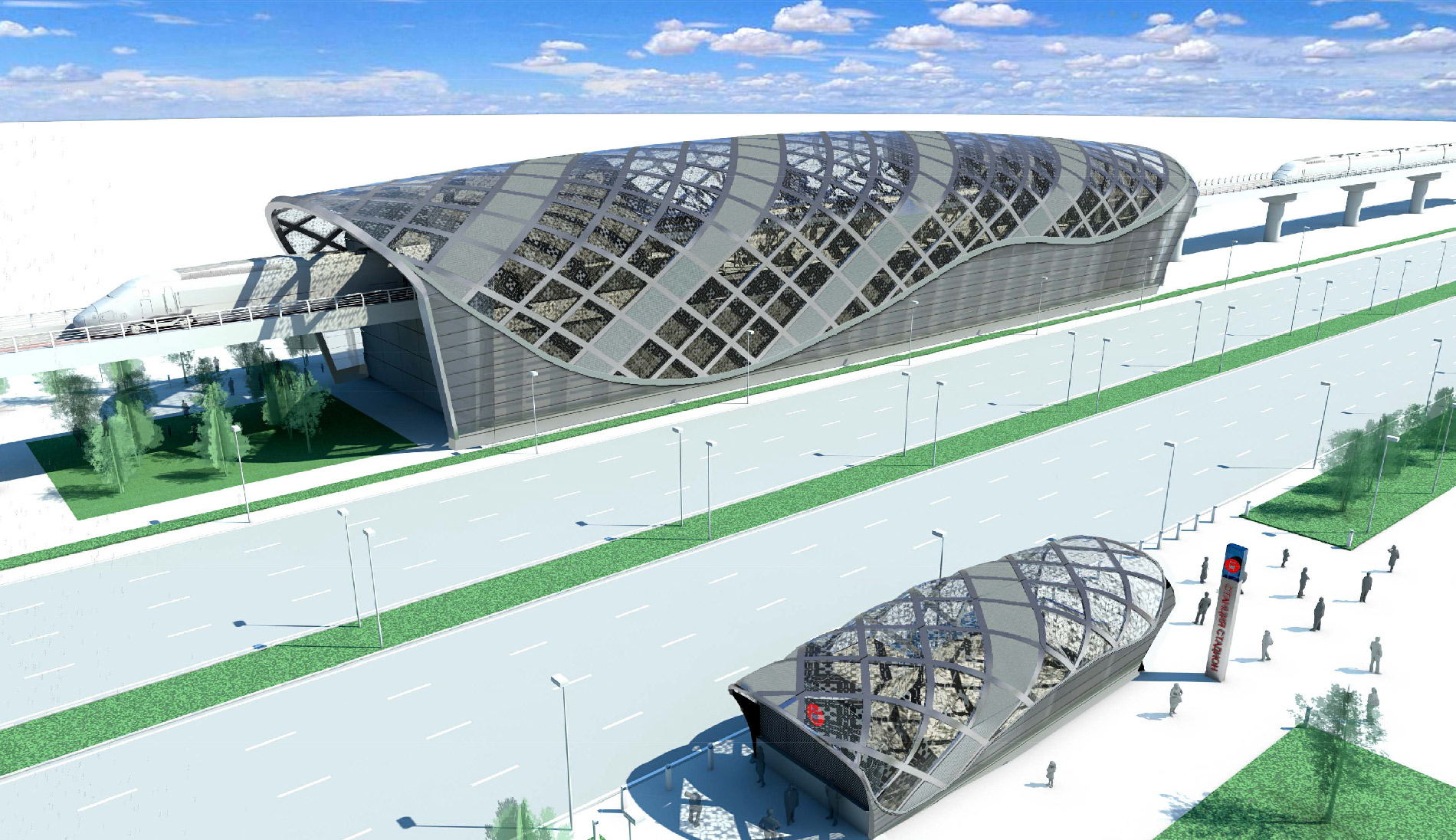

Astana Light Rail Transit Network
Key facts
21 km line. Project linking the airport, the EXPO 2017 complex, the city’s administrative centre and Astana’s future main train station. Double track viaduct, 5 elevated stations, 9 at-grade stations, 2 special stations within the airport and in a railway station, depots, and workshops.
Services
Concept design.
Client
Astana LRT, LLP
Year
2013
Construction Budget
EUR 900 million
Client
Al-Imam Muhammad Ibn Saud Islamic University.
Year
2021
Architect
TYPSA, Félix Candela y otros
GFA
56,000 sqm
Construction Budget
EUR 85 million
Riyadh, Saudi Arabia

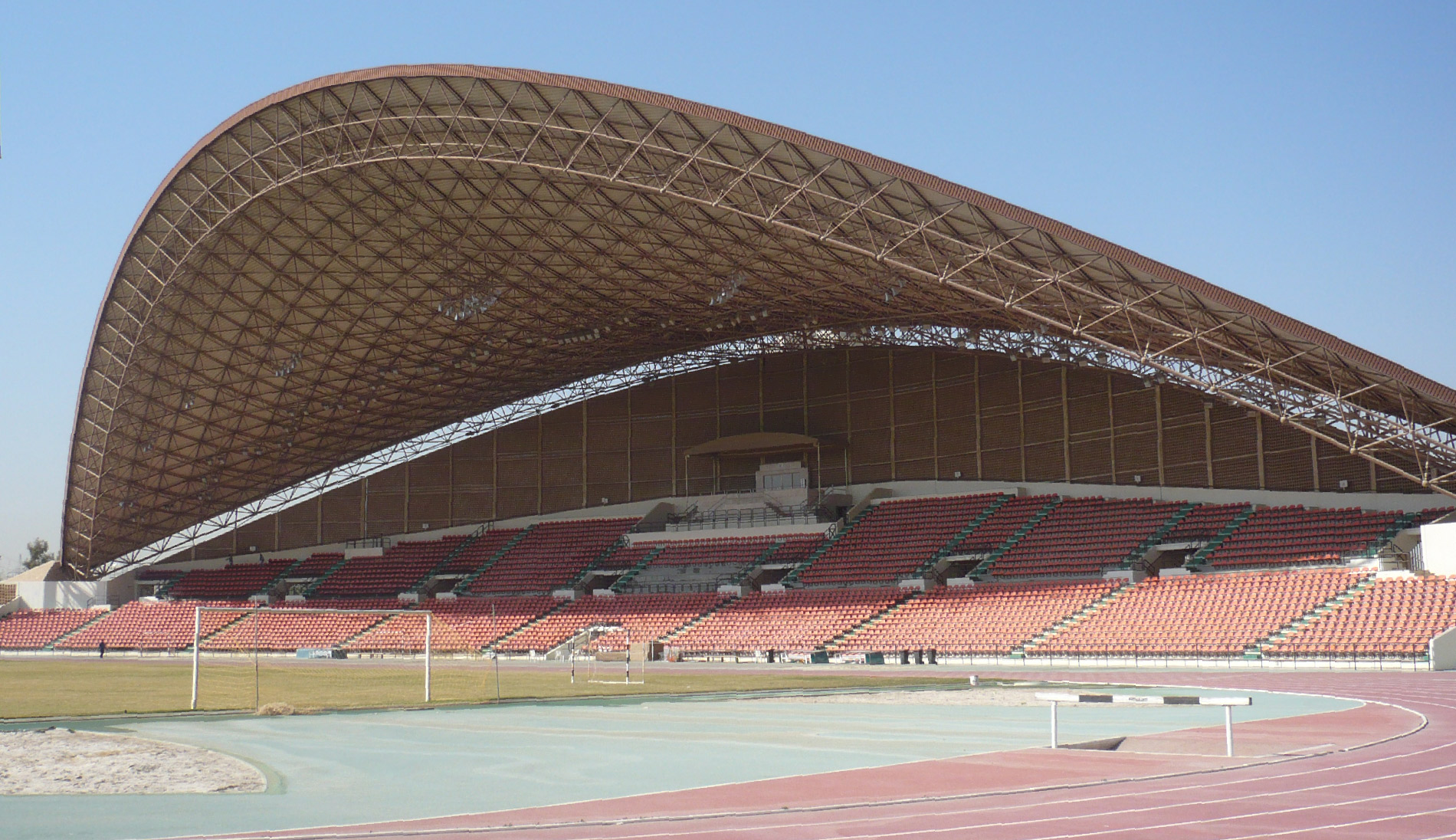

Sports Facilities For Al-Imam Muhammad Ibn Saud University
Key facts
University sports complex with football and athletics stadium, able to host 5,000 spectators and featuring gyms, a sports complex and swimming pools, among others.
Services
Master plan, conceptual and detailed designs, construction management and site supervision, commissioning and maintenance audits. Architectural design, structures, building services and civil works.
